Radiation Detection Equipment

Radiation Detection Equipment

1.

   OEM · Flagship

   Applications

   • XRF Elemental Analysis
   • Ore Sorting
   • Food Safety Screening
   • Industrial QC

   Request datasheet

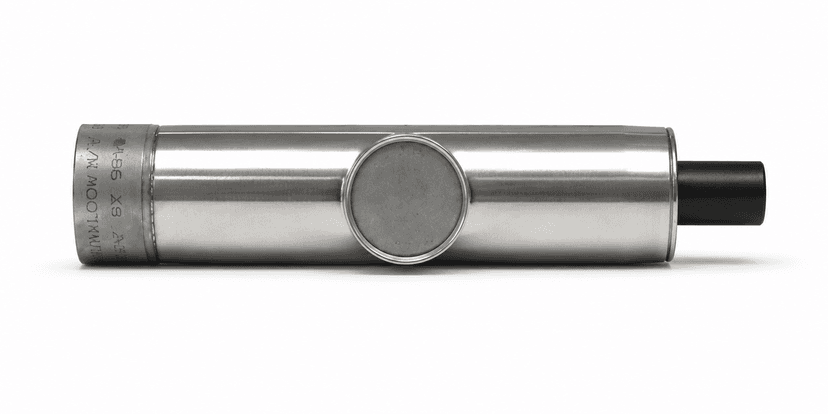

   Ultra-Sensitive Gas-Filled Proportional Counters for XRF

   OEM supply for X-ray fluorescence instruments

   Our core OEM product: sealed gas-filled proportional counters optimised for X-ray fluorescence analysis. Designed for instrument manufacturers who demand exceptional count-rate linearity, stable gain, and repeatable performance across production batches.

   Key Specifications

   Ultra-Sensitive Gas-Filled Proportional Counters for XRF

   Count Rate	100,000+ CPS
   Gas Fill	Xenon, Neon, or Argon
   Energy Range	2 – 30 keV
   Operating Voltage	800 – 1 500 V
   Window	Beryllium, 23 mm dia.
   Length / Diameter	180 mm / 27 mm
   Weight	≈ 140 g

2. 📡

   Research Grade

   Applications

   • X-Ray Diffraction (XRD)
   • Synchrotron Experiments
   • Neutron Imaging
   • Scientific Research

   Request datasheet

   Large-Area Position-Sensitive Detectors

   Spatial resolution across an ultra-large active area

   Position-sensitive proportional counters providing 2-D or 1-D spatial resolution over an exceptionally large detection area. Ideal for X-ray diffraction, synchrotron beam experiments, and neutron imaging where conventional detectors fall short on coverage.

   Key Specifications

   Large-Area Position-Sensitive Detectors

   Active Area	Ultra large — custom
   Resolution Mode	1-D or 2-D position
   Gas Fill	Ar / CO₂ or P-10
   Readout	Delay-line or resistive

3. 🌡️

   Special Applications

   Applications

   • Cryogenic Research
   • High-Temp Industrial Monitoring
   • Space Instrumentation
   • Nuclear Facilities

   Request datasheet

   High-Temperature Range GM Detectors

   Operational from −150 °C to +300 °C

   Geiger-Müller detectors engineered for extreme-environment deployment — from cryogenic laboratories to high-temperature industrial processes. Standard GM tubes fail outside −20 °C to +60 °C; ours cover the full −150 °C to +300 °C span without performance loss.

   Key Specifications

   High-Temperature Range GM Detectors

   Temperature Range	−150 °C to +300 °C
   Detector Type	Geiger-Müller (GM)
   Radiation Type	Gamma, X-ray, Beta
   Construction	Hermetically sealed

4. 🔬

   Light Elements

   Applications

   • Wavelength-Dispersive XRF (WD-XRF)
   • Light Element Mapping
   • Geological Surveys
   • Materials Science

   Request datasheet

   Ultra-Thin Window X-Ray Flow Proportional Counters

   Light-element analysis down to sodium (Na)

   Flow proportional counters fitted with ultra-thin polymer windows for detection of soft X-rays from light elements. The continuous-flow gas design maintains a fresh, contamination-free atmosphere around the anode, ensuring stable response even at very low photon energies.

   Key Specifications

   Ultra-Thin Window X-Ray Flow Proportional Counters

   Window Material	Ultra-thin polymer film
   Light Elements	Na (Z=11) and above
   Gas Mode	Continuous flow (P-10)
   Energy Range	0.1 – 10 keV

5. 💡

   Ongoing R&D

   Applications

   • Cherenkov Detectors
   • Fluorescence Spectroscopy
   • Plasma Diagnostics
   • Astrophysics Instrumentation

   Request datasheet

   Ultra-Sensitive Single-Photon UV Sensors

   Photon-counting UV detection — presented at NDIP 2022

   A novel class of gas-filled photodetector capable of registering individual UV photons with extremely low dark-count rates. Developed as part of an active research programme and presented at the New Developments in Photodetection (NDIP) international conference in 2022.

   Key Specifications

   Ultra-Sensitive Single-Photon UV Sensors

   Detection Mode	Single-photon counting
   Spectral Range	UV (120 – 200 nm)
   Dark Counts	Ultra-low
   Status	Active R&D / custom orders
